Better Price & Better Quality | China Top Pool Equipment Manufacturer

Home / All / Pool Filters / Cartridge Filters /

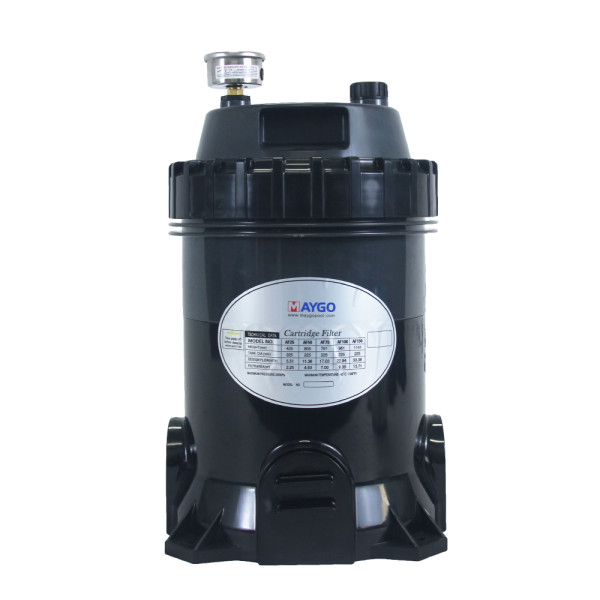

Custom Factory Price Pool Cartridge Filter AF25 5.5m3/h for Pool,Pond,Sauna,Jacuzzi

Custom Factory Price Pool Cartridge Filter AF25 5.5m3/h for Pool,Pond,Sauna,Jacuzzi

Custom Factory Price Pool Cartridge Filter AF25 5.5m3/h for Pool,Pond,Sauna,Jacuzzi
Custom Factory Price Pool Cartridge Filter AF25 5.5m3/h for Pool,Pond,Sauna,JacuzziCustom Factory Price Pool Cartridge Filter AF25 5.5m3/h for Pool,Pond,Sauna,JacuzziCustom Factory Price Pool Cartridge Filter AF25 5.5m3/h for Pool,Pond,Sauna,JacuzziCustom Factory Price Pool Cartridge Filter AF25 5.5m3/h for Pool,Pond,Sauna,JacuzziCustom Factory Price Pool Cartridge Filter AF25 5.5m3/h for Pool,Pond,Sauna,Jacuzzi
CategoriesCartridge Filters
BrandMaygo Pool Equipment Manufacturer
ModelAF25
Operation Pressure80Kpa
Filtration Area2.25-13.72 m2
Design Flow:5.5-33.4 m3/h
Inlet/Outlet:1.5/2inch
Diameter397mm
FOB portNingbo/Shanghai/Guangzhou
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeJul 24,2024
Detail Information
Custom Factory Price Pool Cartridge Filter CF25 5.5m3/h for Pool,Pond,Sauna,Jacuzzi

Cartridge filtration is an effective trouble-free proven method of filtration Pool water enters the filter and passes through a polyester single element cartridge. Suspended particles are trapped and the water is returned to the pool. As the build-up of dirtin the elementincreases so the water pressure rises and the flor decreases When the pressure reaches an unacceptable level. the element must be removed and cleaned(spray washing with a common gardein hose is generally sufficient.

Performance Table
Model H(mm)A H(mm)  B DM(mm)C DM(mm)D Filtration Area (m2) Flow (m3/h)
AF25 445 387 225 397 2.25 5.5
AF50 625 567 225 397 4.63 11.4
AF75 805 747 225 397 7 17
AF100 985 927 225 397 9.38 22.9
AF150 1165 1107 225 397 13.72 33.4
Installation Sketch
Download
AF Cartridge Filters Catalogue
AF Cartridge Filters Manual
