Home / All / Pool Filters / PE Top Mounted Sand Filters / Wholesale 460mm Sand Filters for In/Above Ground Pool | PE Plastic Material

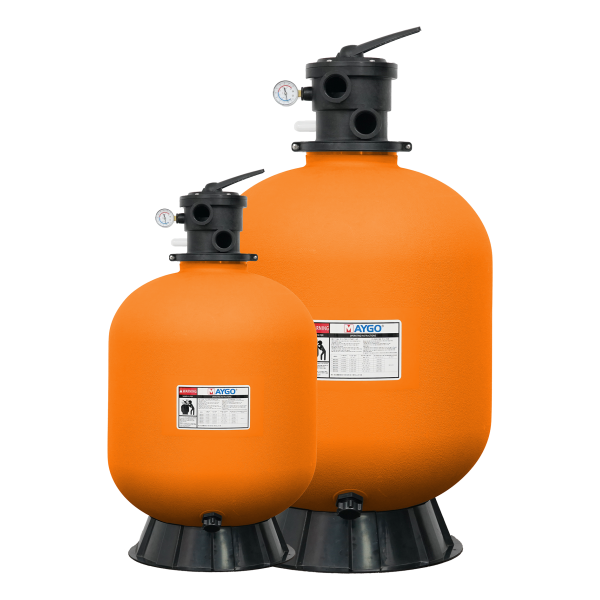

Wholesale 460mm Sand Filters for In/Above Ground Pool | PE Plastic Material

Share
Categories	PE Top Mounted Sand Filters
Trademark/Brand	Maygo Pool Equipment Manufacturer
Model	MGT18
Max Working Pressure	200kpa/28psi/2.0bar
Factory Testing Pressure	300kpa/44psi/3.0bar
Max Water Temp	40℃(104℉)
Size Of Silica Sand	50m³/h/㎡
Color can be customized	Yes
Filter Diameter	360-600mm
FOB port	Ningbo/Shanghai/Guangzhou
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update Time	Jan 29,2026

Contact Now

Favorites

Detail Information

Wholesale 360mm Sand Filters for In/Above Ground Pool | PE Plastic Material

Working Condition●Max Working Pressure: 250kpa/ 35psi/ 2.5bar●Max Hydrostatic Pressure Capacity: 46psi / 3.2bar●Max Water Temp:40℃(104℉)●Size Of Silica Sand: >0.5mm●Max Filtration Velocity:50m³/h/㎡Color can be customized

Performance Table

Model No.	A		C		Filter Area(㎡)	Valve Connections		Max Flow Rate		Sand(KG)
Model No.	mm	in	mm	in	Filter Area(㎡)	Valve Connections		Max Flow Rate		Sand(KG)
MGT16	400	16	665	26.2	0.13	1.5inch	50mm	105LPM	6.3m³/h	35
MGT18	460	18	710	28.0	0.16	1.5inch	50mm	130LPM	7.8m³/h	45
MGT20	510	20	775	30.5	0.22	1.5inch	50mm	180LPM	10.8m³/h	85
MGT25	620	25	975	38.4	0.31	1.5inch	50mm	255LPM	15.3m³/h	145
MGT28	710	28	950	37.4	0.40	1.5inch	50mm	333LPM	20m³/h	220
